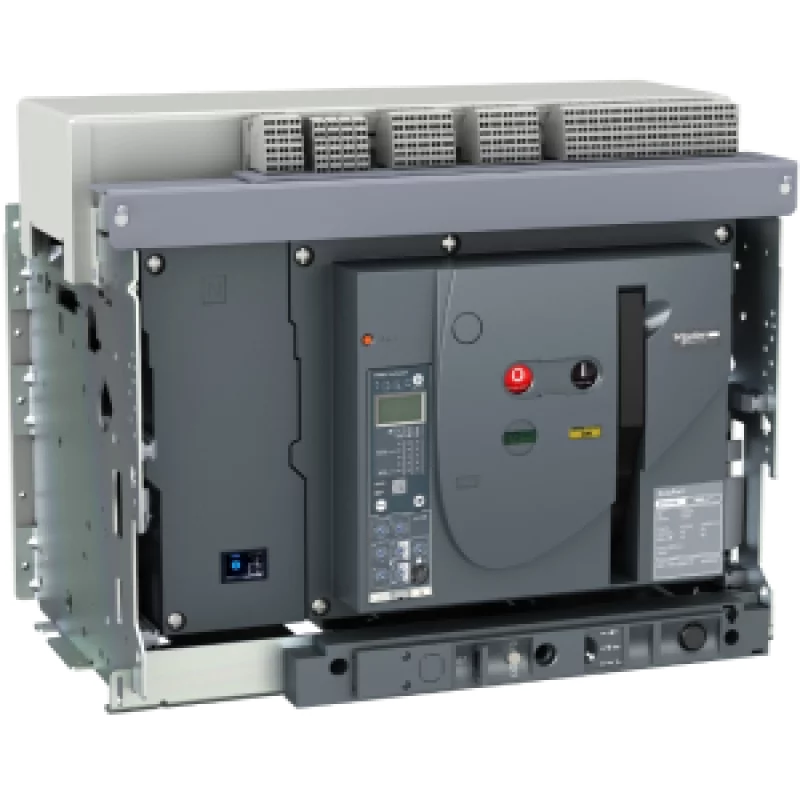

Air Circuit Breaker
We offer Schneider circuit breakers, designed for reliable performance, high interrupting capacity, and user safety. These breakers are used in a variety of industrial applications and are widely used in both residential and industrial sectors to protect power systems from overloads and short circuits.
Specifications
| Feature | Details |
|---|---|
| Type | Air Circuit Breaker (ACB) |
| Brand | Schneider Electric |
| Rated Voltage | Up to 690V AC |
| Rated Current | 800A to 6300A |
| Breaking Capacity | Up to 100kA |
| Frequency | 50/60 Hz |
| Mounting | Fixed and Draw-out options |
| Trip Unit | Electronic and Microprocessor-based |
Used
| Location | Purpose |
|---|---|
| Industrial Panels | Main breaker for power control |
| Commercial Buildings | Power protection and switching |
| Data Centres | Load management and fault control |
| Hospitals | Continuous and safe power supply |
| Manufacturing Plants | High-current system protection |
How to Fit
| Step | Description |
|---|---|
| Panel Opening | Prepare correct ACB slot |
| Mounting | Fit using bolts or rail base |
| Electrical Connection | Connect terminals securely |
| Control Wiring | Attach auxiliary circuits if required |
| Test and Close | Check trip function and close breaker |
How to Work
| Function | Operation |
|---|---|
| Overload Protection | Trips during current over limit |
| Short Circuit Control | Breaks circuit instantly on fault |
| Manual Operation | ON-OFF switch with interlock |
| Remote Operation | Works with control signals if enabled |
| Status Monitoring | LED and meter indicators available |
A leading company in India. Schneider is a leading supplier of Schneider air conditioning control panels in India, known for their high safety standards, long life, and reliable protection. These products are built to withstand heavy-duty applications and are widely used in industrial units and commercial infrastructure.
Advanced Protection For High-Capacity Distribution SystemsWe Are Supplying Schneider ACBs (Air Circuit Breakers) Used For Managing And Protecting Low-voltage Systems With High Current Demands In Commercial, Industrial, And Infrastructure Sectors. These ACBs Are Manufactured With Advanced Micrologic Trip Units, Modular Designs, Draw-out Mechanisms, Arc Chutes, And Reliable Contact Systems. Built For Fault Protection, Isolation, And Precise Load Control, Schneider ACBs Meet Global Standards Like Continue
With The Best Staff, Our Team Of Seasoned Experts Is Offering Luxurious Schneider ACB (Air Circuit Breaker) Products In Kisumu Through Authorized Dealers Known For Quality And Reliable Service. Our Certified Dealers Stock A Wide Range Of Schneider ACB Models Designed To Provide Superior Protection For Electrical Systems In Industrial, Commercial, And Residential Setups. Together With Our Trusted Network In Kisumu, Customers Get Genuine Schneider Electric Products That Meet International Standard Continue
Leveraging Our Vast Industrial Experience, We Are A Supplier Of A Wide Range Of Products. The Schneider Air Circuit Breaker Is Manufactured For Dependable Circuit Control In High-voltage Distribution. These Breakers Operate With Advanced Arc-quenching Technology And Intelligent Protection Mechanisms. They Support Essential Systems In Manufacturing Units, Transformer Yards, High-rise Networks, And Backup Generator Panels. Known For Reliability And Extended Durability, These Products Are Largely U Continue
